A single scanner, reportedly worth $380 million, is now printing a handful of layers inside a laptop chip that does not need it. That is the fact underneath Intel's headline this week, and it is the fact the headline is built to make you forget.
Two numbers arrived close enough together to look like one story. Intel reportedly says it has processed more than a million High-NA EUV wafers, reportedly more than the rest of the industry combined. ASML, meanwhile, has reportedly guided 2026 net sales to €43–45 billion — the floor of a 2030 revenue range it once set at €44–60 billion, touched four years early, before 2026 is even over.
The instinct is to read both as the same signal: the litho supercycle, arriving ahead of schedule. That instinct is half right. The two numbers measure opposite things, and only one of them is money.
The two numbers measure opposite things, and only one of them is money. ASML's revenue is banked demand; Intel's wafer count is a rehearsal for a product that ships in 2028.
Start with ASML's, because it is the honest one. That €43–45 billion is demand customers are paying against, not a forecast of demand hoped for. To meet it, ASML reportedly says it will expand both EUV and DUV capacity by 30% in each of the next two years — the kind of commitment a supplier makes only when the order book forces it.

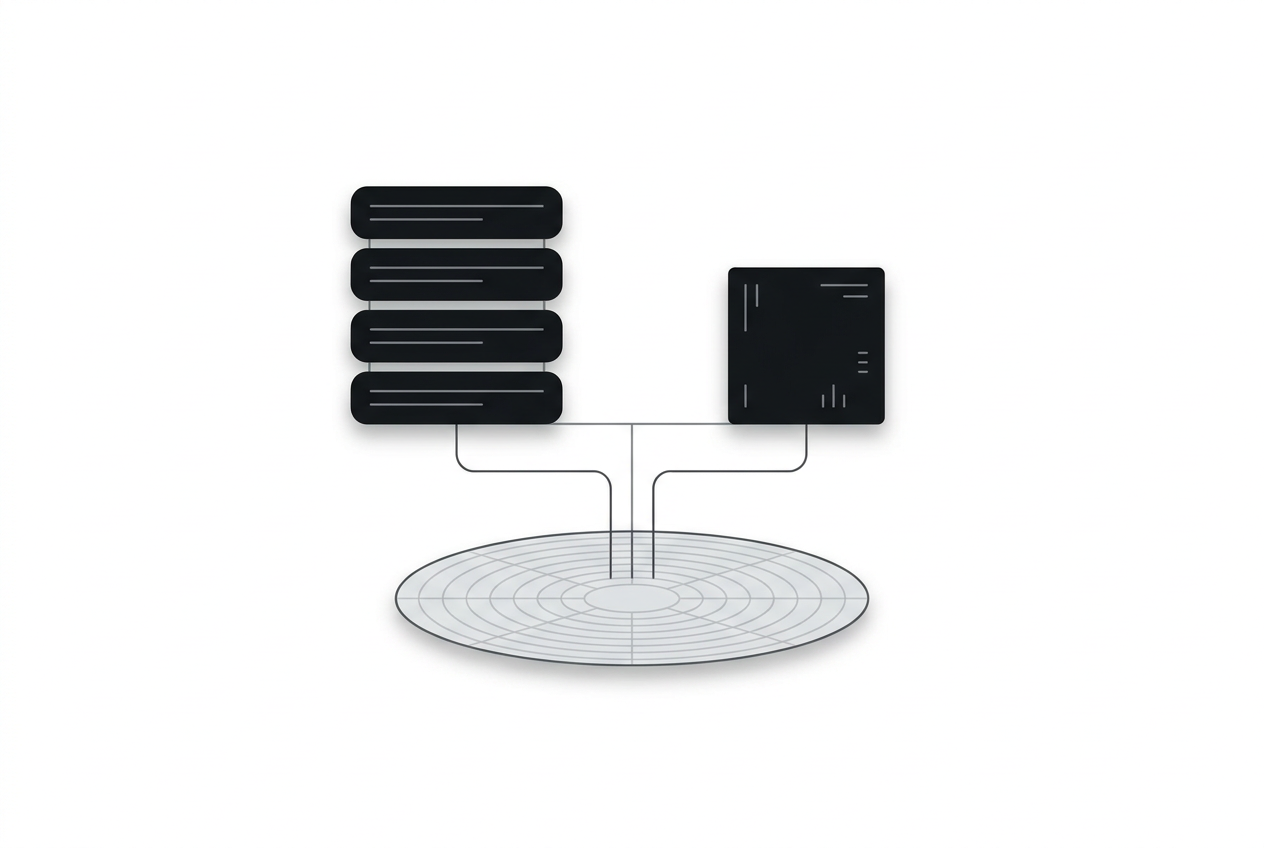

The mechanism is direct. Every AI accelerator and every HBM stack that feeds one adds layers and print passes per wafer, so the AI buildout converts almost one-for-one into wafer starts and then into tool demand. ASML's second quarter showed logic and memory at nearly a 50/50 split of system sales — memory being the HBM-heavy half that barely registered a few years ago, a shift the Samsung base-die story tracks from the wafer-allocation side.
This is the unfakeable part. You cannot fabricate a book of orders that forces you to grow capacity 30% a year; the capital either gets committed or it doesn't. ASML's number is the clean proxy for the boom because it is banked.
Now Intel's million wafers. The number is real, and it represents genuine work — more High-NA volume than everyone else on Earth put together. The question is what that volume proves.
Here the fine print does the damage, and it is ASML's own fine print. On July 15, ASML announced that Intel Foundry had taken High-NA into high-volume manufacturing on a subset of Panther Lake, the Core Ultra Series 3 laptop parts built on Intel 18A. The layers in question, ASML said, are "dual-qualified" — certified to run on High-NA and on the older NXE scanners at matched yields.
Read that clause again. A dual-qualified layer can be exposed on a roughly $380–400 million EXE tool or on a conventional 0.33-NA scanner, and the wafers come out interchangeable.
Which means Panther Lake does not need High-NA. Intel is reportedly running the tool because it owns one, the wafers have to come out of somewhere, and every wafer through it is data. Naga Chandrasekaran, who runs Intel Foundry, framed it exactly this way: qualifying the option lets "our existing fleet of tools" give customers more output "while we develop future options" for later nodes.
That is diligence, not necessity. 18A was designed around Low-NA EUV and multi-patterning; it ships fine without a single High-NA exposure. Intel has threaded the expensive machine into a node that would be complete without it.
The reason it can afford to is the same reason the reps are worth doing. If an 18A wafer runs bad through the EXE tool, the product line doesn't stop — the NXE path is right there, one bay over. Intel is buying learning at low risk, on a node where being wrong costs nothing.
The economics explain why the learning has to be bought ahead, rather than earned when the tool pays for itself. Per SemiAnalysis, drawing on IBM's SPIE modeling, a single High-NA exposure reportedly costs about 2.5 times a Low-NA one.
At that ratio the tool only pays when one shot replaces enough cheaper shots. IBM's numbers put the break-even at three-plus masks: a four-mask double-patterning flow runs 1.7 to 2.1 times the cost of one High-NA exposure, but replacing only two passes makes High-NA 2.5 times more expensive. The crossover for most layers lands around 2030.
So on 18A in 2026, the arithmetic says use the cheap tools — which is precisely what "dual-qualified" concedes. Intel is spending ahead of the payback, and it knows it.
There is a hardware tax layered on top. Reaching 0.55 NA forced ASML into anamorphic optics that image only half a standard field — 26 by 16.5 millimeters instead of 26 by 33 — so a full-size die must reportedly be stitched from two exposures using paired reticles.
That paired-reticle scheme reportedly carries a roughly 27% throughput penalty: a single reticle exposed twice runs 185 wafers an hour, paired reticles just 135. Intel's proposed fix is a 6-by-12-inch mask that fits full-field content on one plate and erases the half-field penalty — which is why the company is expanding its Santa Clara mask shop and pushing a new reticle standard the rest of the industry has not yet adopted.
All of which is real engineering, and all of which is aimed forward. The reps, the OPC models developed on conventional tools before the scanner even ran, the mask work — every piece of it is preparation for a node where High-NA is designed in rather than bolted on.
That node is 14A. There, on the tightest-pitch layers, High-NA reportedly stops being optional and starts being the point. Intel reportedly has 14A on track for risk production in 2028, with the 0.9 PDK due in October.
This is the divergence the two headline numbers hide. ASML's €43–45 billion is a product being sold today. Intel's roughly one million wafers are reportedly a rehearsal for a product that ships in 2028 — and rehearsals are not products.
There is a real story of nerve here, worth stating plainly. Last decade Intel dragged its feet on 0.33-NA EUV and paid with years of delay; this time it is out front, running the most expensive tool in the industry on layers that don't require it, while TSMC's C.C. Wei says his company owns High-NA tools but keeps them out of mass production on cost, with A13 and A12 not expected to need them. Being early is the reverse of the last mistake.
But early is not the same as ahead. Volume processed on a node that doesn't need the tool proves the process can be run; it does not prove the process wins.
The supercycle is genuine, and ASML's banked revenue is the proof. Intel's million wafers are a credibility bid — a claim that when the payback finally arrives around 2030, the company that did the reps will convert them into a lead.
That claim resolves at 14A, on schedule, or it doesn't resolve at all. Until then, Intel is selling the fact that it did the homework. Homework is not a shipping node.
